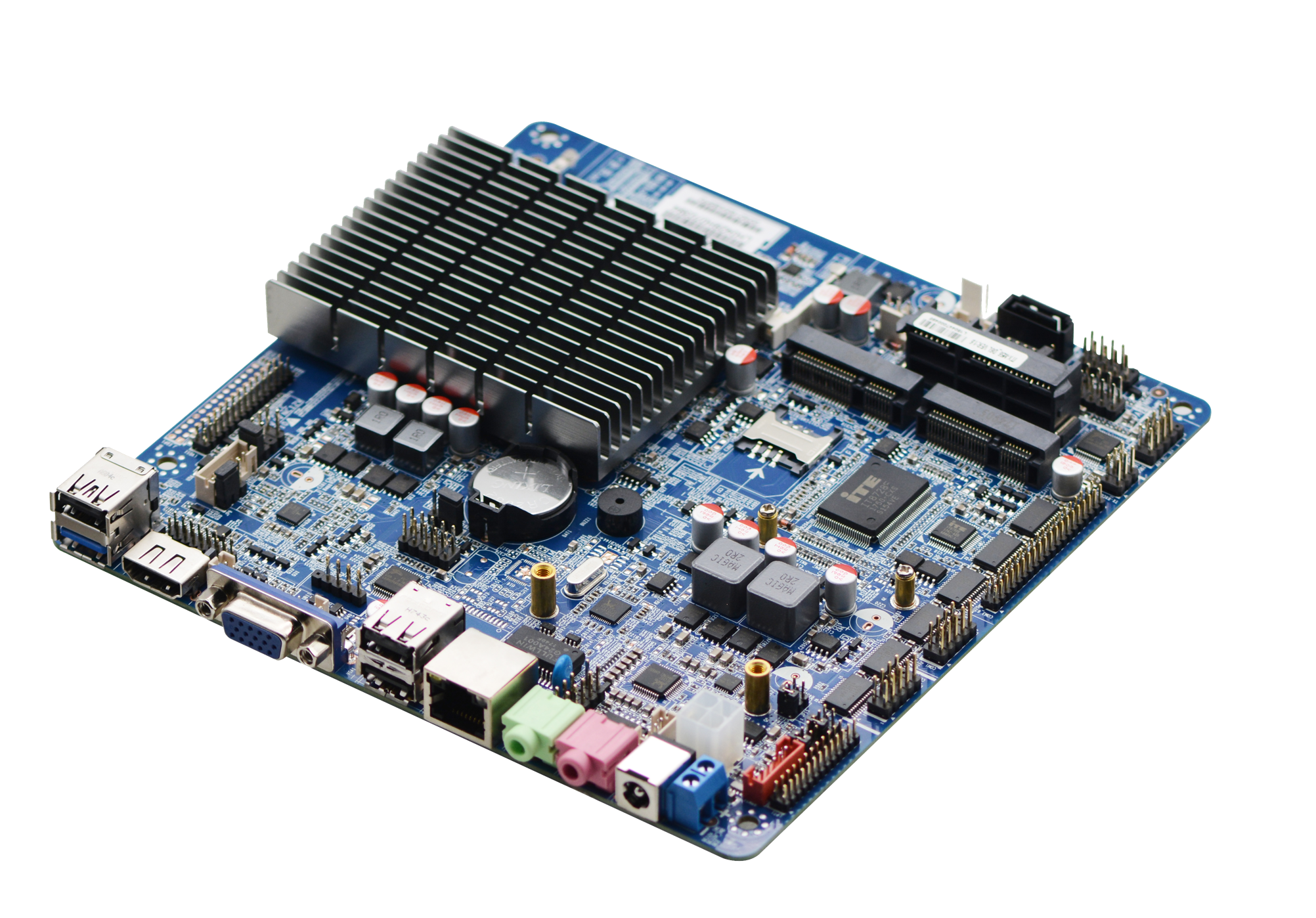

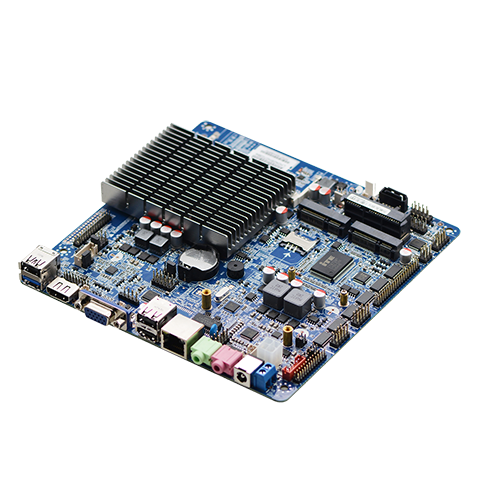

MX-AITX01
Selling Points:
1. Base on Intel ® Apollo lake SOC platform
2. SO-DIMM DDR3L expand as you please
3. Support Windows 10/Linux
4. Support VGA/HDMI/LVDS
5. Interface rich, expand as you please
6. Fanless cooling design
CPU | Intel Apollo Lake J3455/J3355/N3950 | GPIO | Support 4-way Input / Output GPIO |
Dimensions | 170mm*170mm | Watch Dog | Support Hardware reset function(0-255s) |
Memory | DDR3L SO-DIMM up to 8GB | I/O Ports | PS/2 KB/MS port*1, LPT parallel port*1 |
Storage | SATA2.0*1, MSATA*1 support SSD | SIM socket*1, 1*3PIN system fan connector | |
Display | VGA*1, HDMI*1, LVDS*1 | USB2.0*8, USB3.0*1, 1*4PIN CPU fan connector | |
LAN | Gigabit Lan RJ45*1, support WOL/PXE | RS232 COM port*6,COM3 support RS485/RS422 | |
Expansion | Mini PCIE*1, support WIFI/3G/4G | AC Adaptor | DC IN 12V |
Audio | ALC662, 6-chanel, Line-in/Line-out | OS | Windows 10/Linux |
